Pipe Threading Machines

Pipe Threading Machines
Pipe Threading Machines
Product Code : 04
Product Description

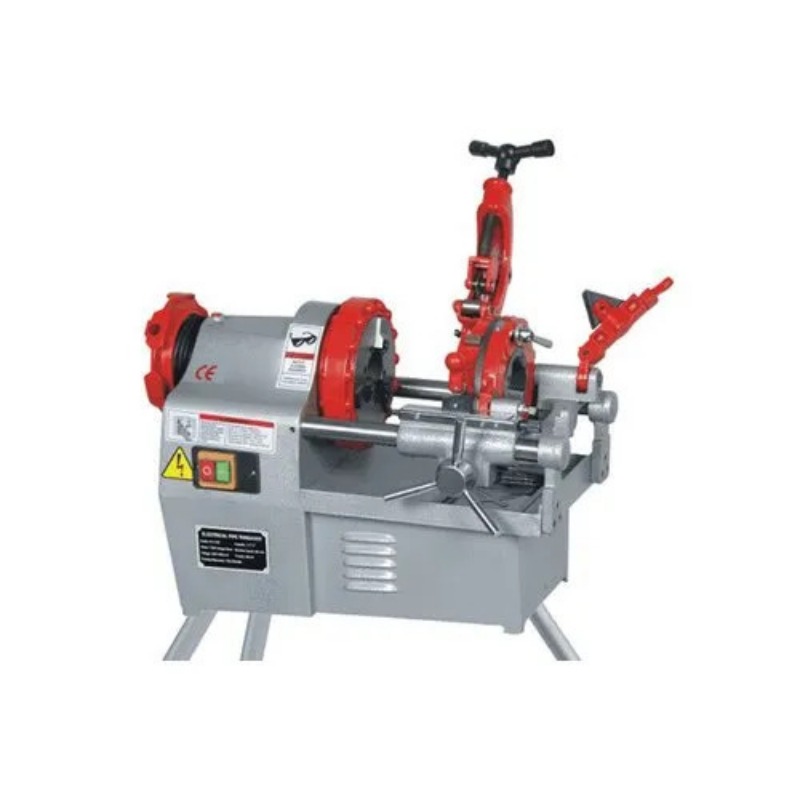

Abiding by set industry norms, we strive to deliver precision engineered Pipe Threading Machine. This machine is stringently designed to perform in industries for threading and cutting different plastic pipes. Following set industry guidelines, we design this machine with some of the quality components like head stock, saddle, die head and base. Our Pipe Threading Machine comes in different specifications based on their design, motor capacity, die head size, spindle speed and threading capacity.

Other details:

The Pipe Threading Machine is use to cut the external threads with the help of Tangential chaser. Threading Chaser. is use as a cutter. Pipe remain still, Die-head rotates and different type of threads can be cut parallel and taper such as BSPT, BSW, BSP, NPT, UNF, METRIC, UNC, ACME, BSF Threads. It mainly consists the following:-

  • Base
  • Head Stock
  • Saddle
  • Bed or Pillar Type Clamping Vice
  • Die Head.

IMC MACHINES are designed to give maximum efficiency and reliable performance under the most severe conditions of service with minimum maintenance cost. All the necessary requirements are combined in this model to from the basic fundamentals of correct threading. All the gears are made of case hardened steel with extra large face with and tooth thickness and cut on hobbing machine for noiseless operation even at high speed. Naturally the are built with high standards of workmanship, material and quality so closely associated with COMPANY TRADITION.

DESIGN AND WORKMANSHIP: The Industrial Machinery Corporation thread cutting machines are designed to produce quality threads within the tolerance for which they were intended.

HEAD STOCK: A heavy duty geared Head Box is of best quality casting providing support to the spindle bearings. The box is of gear type, lubricated, fitted with three extra heavy duty bearings.

THE BED: The bed of pillar type which having two pillars made of best quality steel nicely finished and duly hard chrome plated in the most modern hard chrome plating unit.

THE SADDLE: The Saddle is fitted on two pillars very precisely. It runs on pillars very smoothly and accurately to the Head Stock alignment.

The APRON: The apron gives movement to the saddle with head transfer along with pillars through steel rack and pinion arrangements. It's all gears are made of best quality steel.

VICE JAWS: The vice jaws made from the best quality alloy steel are fitted on the saddle well aligned with the head stock center fitted in a heavy duty box type vice. The jaws are heat treated. The movements of jaws are controlled by a screw on the saddle.

Range of IMC Die Heads.

  • 1/4" to 1"
  • 3/8" to 1.1/2"
  • 1/2" to 2.1/2"
  • 1" to 4"
  • 2.1/2" to 6"
  • 4" to 8"

Technical Specifications

Model

1/4" to 1"

3/8" to 1.1/2"

1/2" to 2.1/2"

1" to 4"

2.1/2" to 6"

4" to 8"

Saddle Movement

10"

10" - 12"

12" - 16"

10" - 12"

10" - 12"

10" - 12"

Spindle Speed Range

60-90

60-90

60-90-120

40-75-115

25-50

25-50

Number of Spindle Speed

2

2

3

3

2

2

Threading Capacity

1/4" to 1"

3/8" to 1.1/2"

1/2" to 2.1/2"

1" to 4"

2.1/2" to 6"

4" to 8"

Production per Hour

60-80

60-80

70-90

35-40

20-25

15-20

H.P. Required

3 H.P.

3 H.P.

7.5 H.P.

12.5 H.P. 960

15 H.P. 960

20 H.P. 960

Lead Screw

Optional

Optional

Optional

Provided

Provided

Provided

Weight (KG) Aprox.

500

550

990

1600

1900

2500
