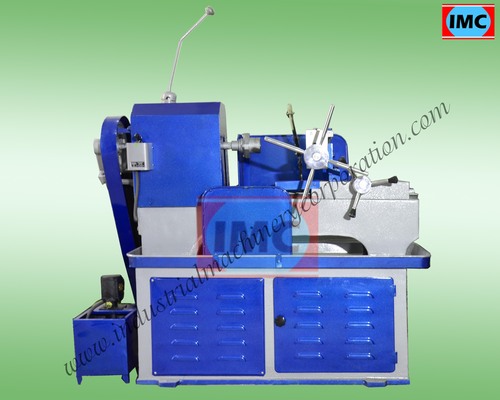

Send InquiryInternal Threading Machine
Internal Threading Machine Specification
- Cooling System
- Integrated Coolant Tank
- Operating Temperature
- 0C to 40C
- Frame Type
- Heavy Duty Fabricated Frame
- Noise Level
- Low
- Accuracy
- High Precision Threading
- Control System
- Manual Control Panel
- Frequency
- 50 Hz
- Power Rating
- 1.5 kW
- Connectivity Options
- None
- Features
- Rugged construction, easy operation, replaceable threading tools
- WorkingSpeed
- Variable
- Motor Power
- 2 HP
- Lubricating System
- Automatic Lubrication
- Voltage
- 415 V
- Machine Type
- Threading Machine
- Production Capacity
- Up to 35 pcs/hr
- Technology
- Mechanical
- Power Source
- Electric
- Power
- 1.5 kW
- Surface Treatment
- Paint Coated
- Dimension (L*W*H)
- 1150 mm x 930 mm x 1650 mm
- Weight (kg)
- 860 kg
- Color
- Green
- Max Threading Depth
- 100 mm
- Tool Type
- HSS & Carbide Threading Tools
- Supported Materials
- Mild Steel, Stainless Steel, Cast Iron, Brass
- Safety Features
- Overload Protection, Emergency Stop Button
- Service Support
- Onsite and Remote Technical Support
- Optional Accessories
- Digital Length Stop, Foot Pedal Activation
- Clamping Type
- Manual Chuck
- Thread Size Range
- Up to 150 mm (6 inch)
- Standard Accessories
- Thread chasers, Die heads, Coolant System, Lubrication Pump
- Installation
- Floor Mounted
- Main Body Material
- Cast Iron Alloy
- Operator Requirement
- 1 skilled operator
Internal Threading Machine Trade Information
- Minimum Order Quantity
- 1 Unit
- Supply Ability
- 10 Units Per Month
- Delivery Time
- 30 Days
- Main Export Market(s)
- Asia
About Internal Threading Machine
| Condition | New |
| Automatic Grade | Manual |
| Brand | IMC |
| Model | 2017 |
| Model Name/Number | IMC |
These machines are truly sophisticated and are engineering masterpieces in their own right. The internal threading machine on offer is manufactured as per industry standards, and stands high on parameters of quality and durability. These are fabricated using high grade raw material, which not only ensures that the machine will be able to resist wear and tear, but also prove to be resistant against breakage and abrasion.
A good grade internal threading machine will have a system that is so advanced that little human intervention will be required. This will not only ascertain that the work done is completed with perfection, but will also reduce human effort. The way these machines are fabricated, the quality inspection team, ensures that there are no regular breakdowns, during operation.
The internal threading machine offered by Industrial Machinery Corporation will allow for the cutting of 150mm thread length. The speed in the gear box is five, while it can produce up to eighty pieces per hour. While these are the basic specification, being a customer centric company, Industrial Machinery Corporation will also offer the benefit of customization.
These machines are truly sophisticated and are engineering masterpieces in their own right. The internal threading machine on offer is manufactured as per industry standards, and stands high on parameters of quality and durability. These are fabricated using high grade raw material, which not only ensures that the machine will be able to resist wear and tear, but also prove to be resistant against breakage and abrasion.
A good grade internal threading machine will have a system that is so advanced that little human intervention will be required. This will not only ascertain that the work done is completed with perfection, but will also reduce human effort. The way these machines are fabricated, the quality inspection team, ensures that there are no regular breakdowns, during operation.
The internal threading machine offered by Industrial Machinery Corporation will allow for the cutting of 150mm thread length. The speed in the gear box is five, while it can produce up to eighty pieces per hour. While these are the basic specification, being a customer centric company, Industrial Machinery Corporation will also offer the benefit of customization.
Key Features and Performance
The threading machine boasts a powerful 1.5 kW electric motor with manual control, allowing variable speeds for high-precision threading. Overload protection and an emergency stop button ensure operator safety, while integrated cooling and automatic lubrication maintain consistent performance. The heavy-duty frame and paint-coated surface provide longevity even in tough environments.
Versatile Material Support
Engineered to handle mild steel, stainless steel, cast iron, and brass, this machine meets the needs of diverse manufacturing sectors. With a maximum threading depth of 100 mm and manual chuck clamping, it is versatile and reliable for a variety of internal threading applications.
Installation, Operation, and Support
Installation is straightforward as the machine is floor-mounted, requiring a single skilled operator for effective use. Comprehensive service support is available both onsite and remotely, ensuring minimal downtime. Standard accessories facilitate smooth operation, with optional features to further enhance productivity and ease of use.
FAQs of Internal Threading Machine:
Q: How is the internal threading operation performed on this machine?
A: The threading process uses manually clamped workpieces and HSS or carbide threading tools. A skilled operator controls the mechanical system via the manual control panel, adjusting variable speed as needed for precision results. An integrated coolant tank and lubrication system extend tool life and maintain thread quality throughout the operation.Q: What types of materials can this machine efficiently thread?
A: The machine is capable of threading mild steel, stainless steel, cast iron, and brass. Its robust cast iron alloy body supports high-precision threading on these materials without loss of accuracy or performance, making it suitable for a range of industrial applications.Q: When is it recommended to use the optional digital length stop or foot pedal activation?
A: Optional accessories like the digital length stop are helpful when precise, repetitive thread lengths are required, enhancing operational accuracy. Foot pedal activation increases operator efficiency by allowing hands-free control of the machine, especially beneficial in high-volume or batch production scenarios.Q: Where should the machine be installed for optimal performance?
A: The threading machine should be installed on a flat, stable surface using its floor-mounted design. For best operation, use it in environments within 0C to 40C. Ensure it is connected to a 415 V, 50 Hz power supply and has adequate space to accommodate its dimensions and allow proper operator movement.Q: What is the process for replacing threading tools or changing thread sizes?
A: Threading tools are easily replaceable, facilitated by the manual chuck and standard thread chasers and die heads included. To change thread sizes, select the appropriate die head and threading tool, clamp the workpiece securely, and adjust the controls as required; instructions are included with the user manual for guidance.Q: How does this machine benefit production facilities?
A: This machine increases productivity by allowing up to 35 pieces per hour with minimal operator intervention. Its rugged construction, automatic lubrication, and integrated coolant tank reduce maintenance needs and downtime. The high level of accuracy ensures consistent thread quality across multiple materials, providing value to manufacturers and suppliers.Q: What support options are available after installation?
A: After installation, comprehensive service support is provided both onsite and via remote technical channels. This ensures any operational or maintenance issues are resolved promptly, helping maintain consistent production output and minimizing machine downtime.
