मूल्य/उद्धरण प्राप्त करें

MOQ : 1 Unit

फ़्रिक्वेंसी
50/6 Hetrz (Hz)

मशीन का प्रकार
pipe threading machine

शोर का स्तर
low db

विशेषताएँ
Heavy Duty

कूलिंग सिस्टम
Air Cooling

फ़्रेम टाइप
Metal Frame

वोल्टेज
220/ 415 Volt(v)

उपयोग/अनुप्रयोग
Industrial

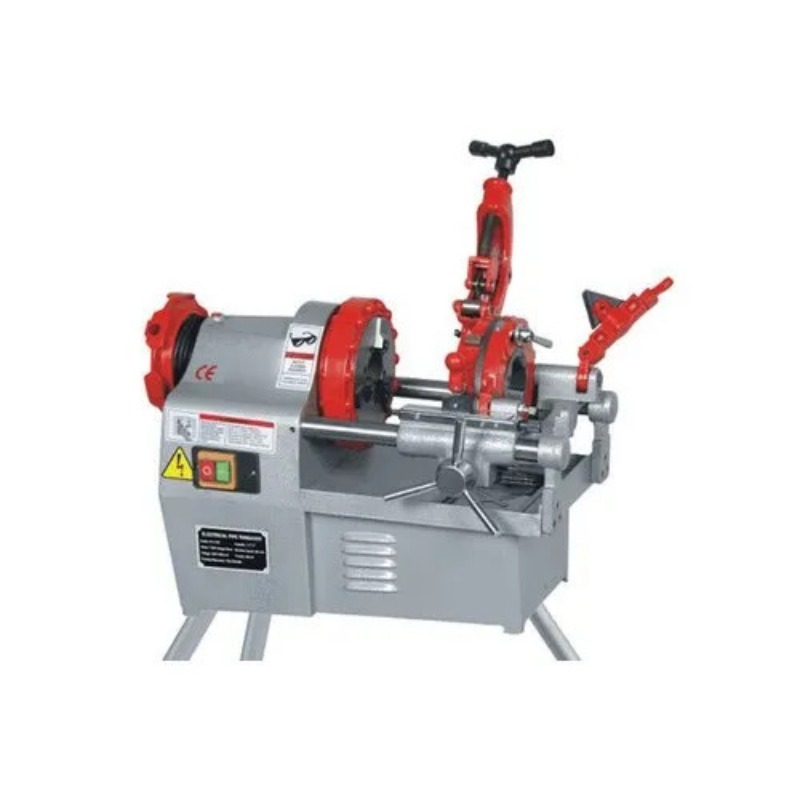

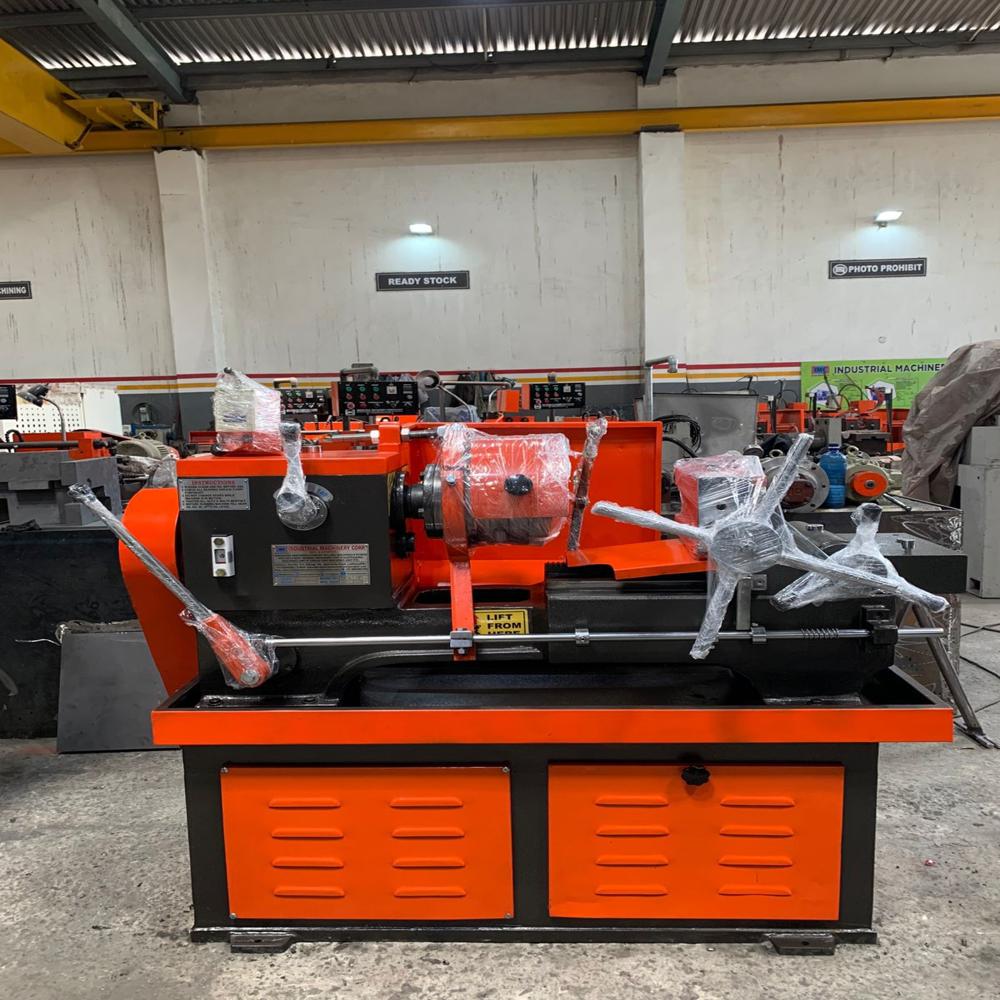

We bring forth an advanced line of Pipe Threading Machine that is truly sophisticated and true to our quality claims. These machines are manufactured in complete sync with laid industry standards, and are immensely appreciated for quality and durability. Not only are these made as per latest technology but are also engineered using high grade raw material, which ensures that designed Pipe Threading Machine remain resistant to any form of wear and tear, breakage & abrasion.

Range of IMC Die Heads in our range:

1/4 to 1 capacity
3/8 to 1.1/2 capacity
1/2 to 2.1/2 capacity
1 to 4 capacity
2.1/2 to 6 capacity
4 to 8 capacity

These high-tech and advanced machines require very less human intervention for operations. The automation of the process guarantee efficiency and quality consistency, which is not always possible with manually operated machines. The sturdy construction of the machine ensures no event of regular breakdowns even if it is continually operated. A threading machine is composed of a bed, saddle and apron, made from high in grade materials.

Pipe Threading Machine Specifications:

Model	1/4 to 1	3/8 to 1.1/2	1/2 to 2.1/2	1 to 4	2.1/2 to 6	4 to 8
Saddle Movement	10	10 - 12	12-16	10-12	10 - 12	10-12
Spindle Speed Range	60-90	60-90	60-90-120	40-75-115	25-50	25-50
Number of Spindle Speed	2	2	3	3	2	2
Threading Capacity	1/4 to 1	3/8 to 1.1/2	1/2 to 2.1/2	1 to 4	2.1/2 to 6	4 to 8
Production per Hour	60-80	60-80	70-90	35-40	20-25	15-20
H.P. Required	3 H.P.	3 H.P.	7.5 H.P.	12.5 H.P. 960	15 H.P. 960	20 H.P. 960
Lead Screw	Optional	Optional	Optional	Provided	Provided	Provided
Weight (KG) Aprox.	500	550	990	1600	1900	2500
